BaseTread GB-500

The BaseTread GB-500 features the industry's strongest grid capable of bearing 1,000 lbs. per wheel load.

  • The BaseTread GB-500 series provides support for heavy foot and cart traffic. The rugged 3/4" aluminum rails assure stability and longevity, while the vinyl hinge allows the tread to be rolled up and moved for easy cleaning.

  • Materials: Corrosion-Resistant 6063-T5&T6 aluminum with numerous insert options

  • Weight Load Capacity: 1,000 lbs. per wheel

  • Thickness: 3/4"

  • Depth Mat and L-5 frame: 3/4"

  • Frame Options: Recess only

  • LEED: based on NCv4
    - v4 MR p2
    - v4 MR c1
    - v4 MR c3
    - v4 EQ c1

  • Recycled Content: 38.3% per-consumer

  • Additional Specs: 6063-T5 &T6 aluminum spaced 1-1/2" on center, connected with aluminum hinge and 1" x 1/8" slotted holes for maximum drainage

  • Custom alternation patterns are available for all inserts

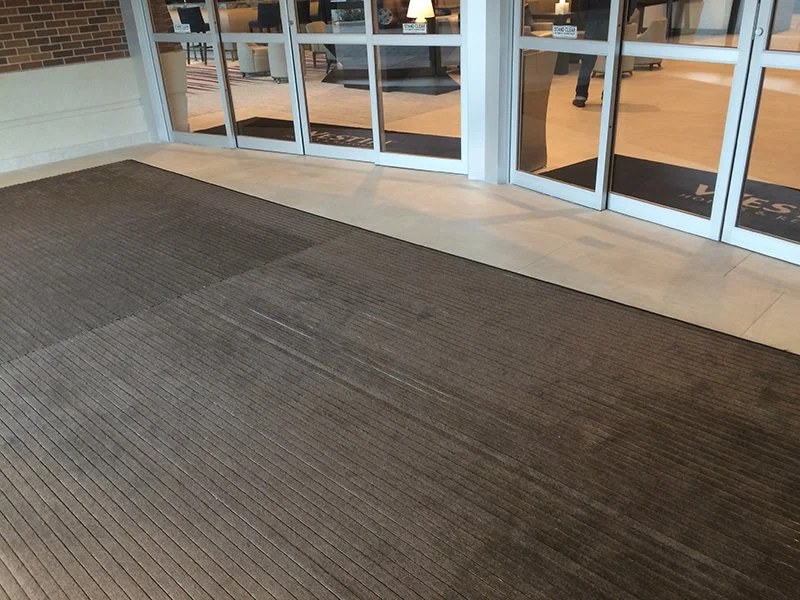

Brown doormat outside glass doors of a building.

Insert Types & Colors

Aluminum doormat with brown bristles and black rubber edges on a white background.

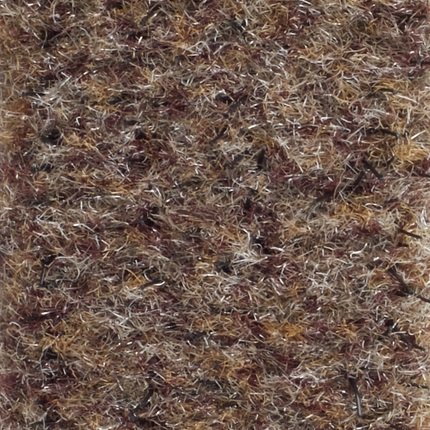

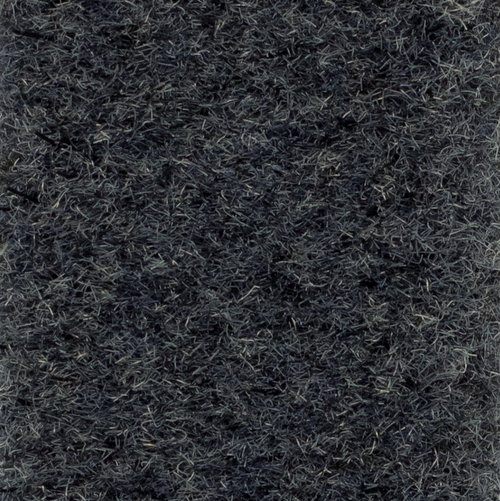

GB-500 MonoScrape Carpet

Aluminum doormat with textured gray top surface and black edges.

GB-501 Vinyl

Aluminum heat sink with fins for electronic coolingAluminum doormat with textured gray top surface and black edges.

GB-502 Polybrush

Aluminum doormat with brown bristles and black rubber edges on a white background.

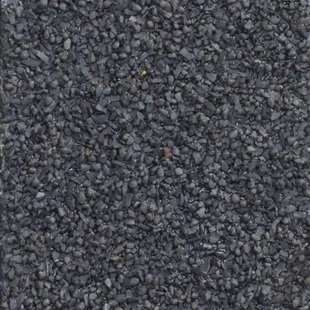

GB-504 Vinyl Abrasive

Aluminum extrusion profile with black and silver components.

GB-505 Serrated Aluminum

Metal Finish Options

Color options for aluminum grill metal finishes labeled as Standard Mill, Clear, Light Bronze, Medium Bronze, Dark Bronze, and Black.

Mill finish is standard. Anodized color palette shown. Custom anodized and powder coated finishes available upon request.
